FreeMax Mesh Pro Review – Double & Triple Mesh Coils

FreeMax Mesh Pro

4.6/5

9.2

FreeMax Mesh Pro Review Banner
Design — 8.5
Build Quality — 9.0
Coils — 9.5
Performance — 9.5
Flavor — 9.5

PROS

CONS

Check Price

The FreeMax Mesh Pro is the latest sub-ohm tank to be released by FreeMax, and is the follow-up to the popular FireLuke Mesh tank. The FreeMax Mesh Pro is a massive tank that can hold up to 6ml of ejuice, and features an optional full resin body that looks absolutely beautiful. Not only that, but it is also said to be the first multi-mesh, sub-ohm tank on the market with single, double and triple mesh coils available.

I’m a big fan of the original FireLuke Mesh, and I thought that the single mesh coils delivered a very flavorful vaping experience. So when I heard that the Mesh Pro would take multi-mesh coils, I had to get my hands on one to try it.

Well, I got one… And I’ve been enjoying every second of it since! So let’s get right into this FreeMax Mesh Pro review!

This item was sent to us for the purpose of this review. This does not in any way affect our opinion or ratings of the device.


FreeMax Mesh Pro Review – Double & Triple Mesh Coils

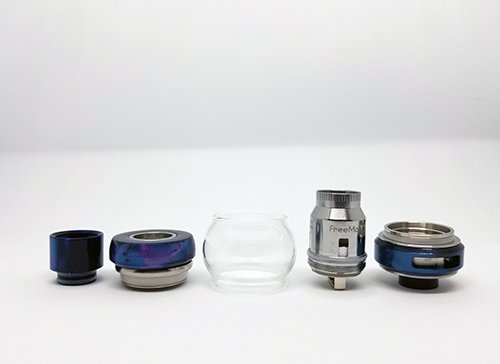

What’s In The BoxFreeMax Mesh Pro Box Contents

  • 1 x FreeMax Mesh Pro Sub-Ohm Tank
  • 1 x Pre-Installed 0.2 ohm Double Mesh Coil Head
  • 1 x 0.15 ohm Kanthal Single Mesh Coil Head
  • 1 x Pre-Installed 5ml Glass Tank Section
  • 1 x Spare 6ml Bubble Glass Tank Section
  • 1 x Spare Parts Pack
  • 1 x User Manual

Specifications

  • Metal or Resin Body Tank
  • 25mm Diameter Base
  • Push to Open Top Fill System
  • Mesh Coils: Kanthal Single, Double, and Triple Mesh + SS Single Mesh for TC
  • 6ml Max Capacity Large Bubble Glass Tank Section
  • 5ml Max Capacity Bubble Glass Tank Section
  • Dual Adjustable Bottom Airflow Control
  • 9mm Wide Bore Drip Tip

Design & Build Quality

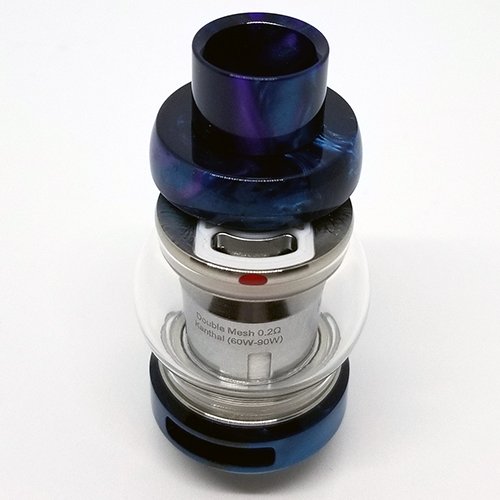

The first thing I noticed about the FreeMax Mesh Pro is its size. This sub-ohm tank is absolutely massive! While the base diameter of the tank is 25mm, the rest of the body is gigantic. From the 9mm wide bore drip tip, to the 5ml and 6ml glass tank sections, there is nothing small about this tank.

Even more unique than its size is the optional full resin construction (The Mesh Pro is available in 5 different colored metals as standard). The drip tip, top cap, and base of the tank are all made of resin, and the dark blue/purple color that we received for this review looks stunning. One thing to keep in mind is that resin is very fragile, and so one drop could mean the end of your Mesh Pro. If you get the resin version, be very careful with this tank. You’ve been warned!

The Mesh Pro uses a very simple, push-to-open top fill system. First, directly underneath the resin top cap is a small metal strip. On this metal strip, there is a red dot that indicates where to push the top cap back. Push above the red dot, and slide the top cap back to reveal a single large fill port. This fill port is even large enough to fit dropper bottle nozzles, and has a silicone lip to prevent leaking. Overall, the FreeMax Mesh Pro is a breeze to fill, and I haven’t experienced any sort of leaking from around the fill port/top cap area.

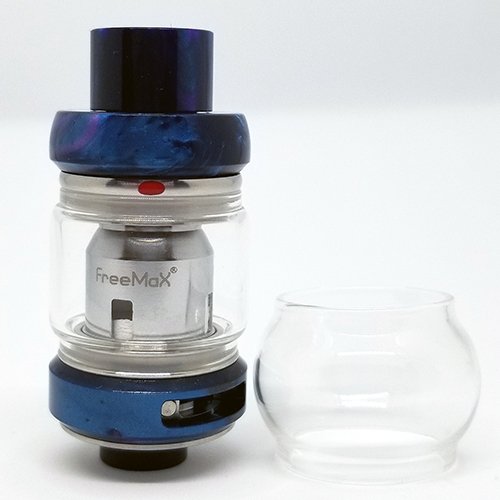

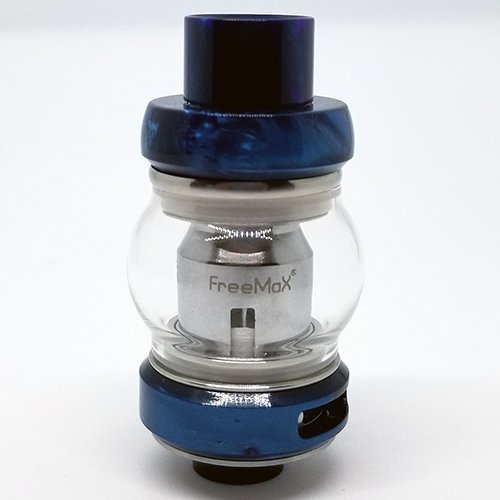

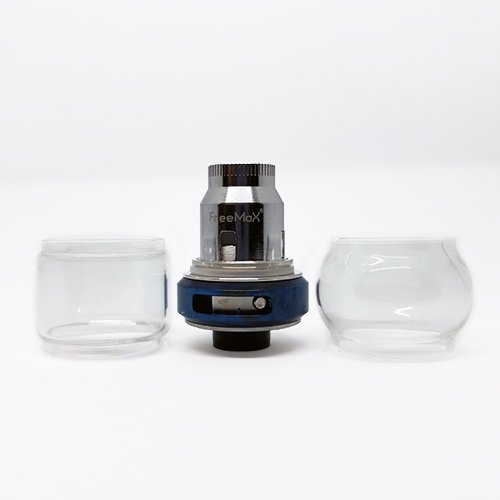

There are two glass tank sections included with the Mesh Pro: one pre-installed 5ml standard glass tank, and one 6ml bubble glass tank. The 5ml glass section gives the Mesh Pro a more streamlined look, and doesn’t stick out any farther than the rest of the tank. The 6ml bubble glass on the other hand sticks out quite a bit more than the top cap or base, and so you have to be even more careful with this tank when using it. But hey, at least if you tip your mod over, the bubble glass will break first and save the resin body.

There are two large airflow slots located at the bottom of the tank which are fully adjustable, and can be fully closed. However, in my testing I noticed that juice would sometimes leak from between the airflow control ring and the metal base of the tank.


Coils

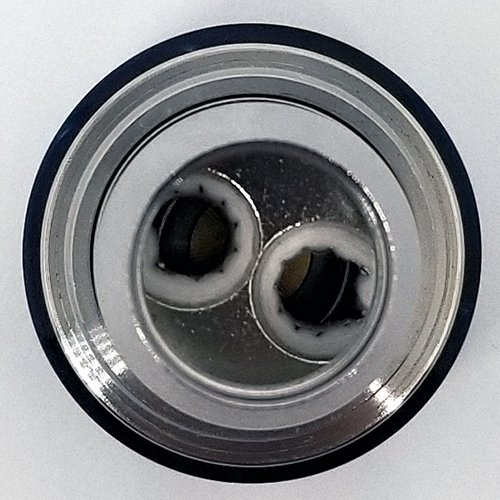

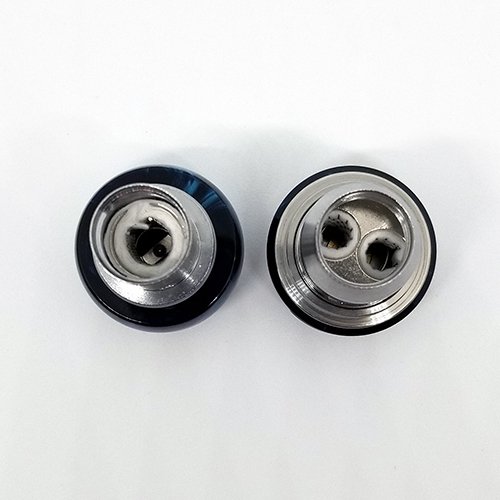

  • FreeMax Mesh Pro Coils

Perhaps the most interesting feature of the Mesh Pro is its coil compatibility: it’s compatible with coils from the original Fireluke and Fireluke Pro sub-ohm tanks. However, we’re going to stick to the new coils for this review. There are four new coils available for the FreeMax Mesh Pro:

  • Kanthal Single Mesh 0.15ohm Coil – Rated for 40-70W
  • Kanthal Double Mesh 0.2ohm Coil – Rated for 60-90W
  • Kanthal Triple Mesh 0.15ohm Coil – Rated for 80-110W
  • SS316L Single Mesh 0.12 Coil – Rated for 400°F – 550°F

Included with the FreeMax Mesh Pro you get a Kanthal single mesh coil, as well as a Kanthal double mesh coil. I thought it was a shame that a triple mesh coil wasn’t included, but I picked up a pack to ensure that all bases were covered for this review. And believe me, you’ll want to pick up a pack as well.


PerformanceFreeMax Mesh Pro

When it comes to sub-ohm tanks, the flavor you get from this baby is stellar. More specifically, the flavor you get from the triple mesh coils is stellar. This is where the flavor truly shines, and so it’s a bit disappointing that FreeMax didn’t include a triple mesh coil with the tank.

I found that the single and double mesh kanthal coils delivered rather average flavor, as the vapor seemed to be quite light and very airy. Even with the airflow closed to the minimum, the vapor was never very dense. Instead, it was very airy and very smooth.

Now, with the triple mesh coil at 90W is where I found the flavor really popped with this tank. I tasted flavors in my ejuice that were otherwise muted in other sub-ohm tanks, and I found the vapor to be very dense and flavorful. Even with the airflow set to fully open, the triple mesh coil is amazing and delivers a truly unique taste experience.

Being as they are multi-mesh coils, the Mesh Pro goes through juice like nobody’s business. I was using at least a full 6ml tank of juice every day, which tells you that these coils are just about as thirsty as they come. In terms of juice usage, I would say that it’s comparable to an RDA.

Another thing that really sets the Mesh Pro apart from other sub-ohm tanks is its coil life. The new double and triple mesh coils can be used for quite a while without having to be changed. I used each coil quite heavily for up to two weeks at a time before I started to notice the flavor dull at all. This means less money spent on changing coils, which is great for your pocket.

Additionally, swapping flavors is really easy with these coils. After just a few puffs, the old flavor was completely gone and I could only taste the new one. As somebody who can’t vape the same flavor all the time, this makes these coils even more perfect.


Final Verdict — FreeMax Mesh Pro ReviewFreeMax Mesh Pro Review Banner

So what’s the bottom line for the FreeMax Mesh Pro? Personally, I think it’s a great tank with features that set it apart from other sub-ohms on the market. The filling system is easy to use, the tank capacity is great, and the flavor you get is amazing. However, the multi-mesh coils come with the downside of being extremely thirsty, and this is something to keep in mind. Some ejuices these days can be very expensive, so you’ll have to decide if the flavor gain is worth the extra juice that the multi-mesh coils will use. Stay Versed!

CHECK PRICE

Danielle Alhiraki Author Picture

Danielle Alhiraki

Danielle is Versed Vaper’s Senior Editor for Buyer’s Guides. In addition to looking after buyer’s guides, she writes hardware reviews as well as manages our review team. Danielle used to be a pack a day smoker but vaping changed her life for the better. Smoke-free since 2015, Danielle is a huge advocate for tobacco harm reduction and has made it her mission to help other smokers make the switch to vaping. Danielle has reviewed hundreds of vaping products since joining Versed Vaper in 2018. Generally, you'll find her watching Disney movies, binging television series, or showing people pictures of her cats.

3 comments

  • I have nothing but trouble with any of the triple mesh coils but all I hear is praise.

    I prime by super soaking it, fill the tank, do 5-10 dry pulls with airflow closed and not igniting it, let it sit for half an hour to an hour, work my way up from 25w in 5w increments to 75w, take a 2 second hit every 10 mins for the first hour and by then it’s already burned out. Been through 10 of these.

    How are there any good reviews?

    • Matthew,

      That is very weird and I’m not sure how you’re having so much trouble. It could be the VG/PG blend of ejuice that you’re using; is it closer to a 50/50 VG/PG or something like an 80/20 VG/PG? In any case I wouldn’t expect the coils to do that, and I myself didn’t have any sort of trouble with the coils burning out.

      The coils lasted me about two weeks each, all I can think of is you may have gotten a few packs of dud coils but even that would be a very slim chance.

      Sorry you’re having so much trouble with the triple mesh coils, definitely shouldn’t be the case. 🙁

  • What other coils can this tank fit?
    -geek vape super mesh
    -eleaf mesh

    Asking because I hear that the triple mesh is almost impossible to get in my area as it always runs out so it’s good to have other options in case I can’t get my hands on any.
